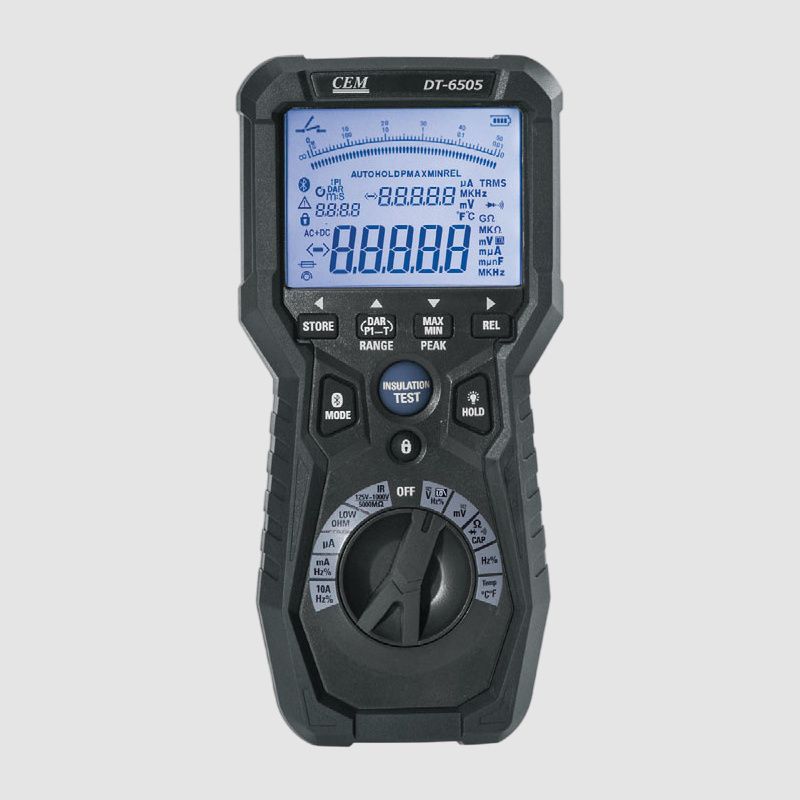

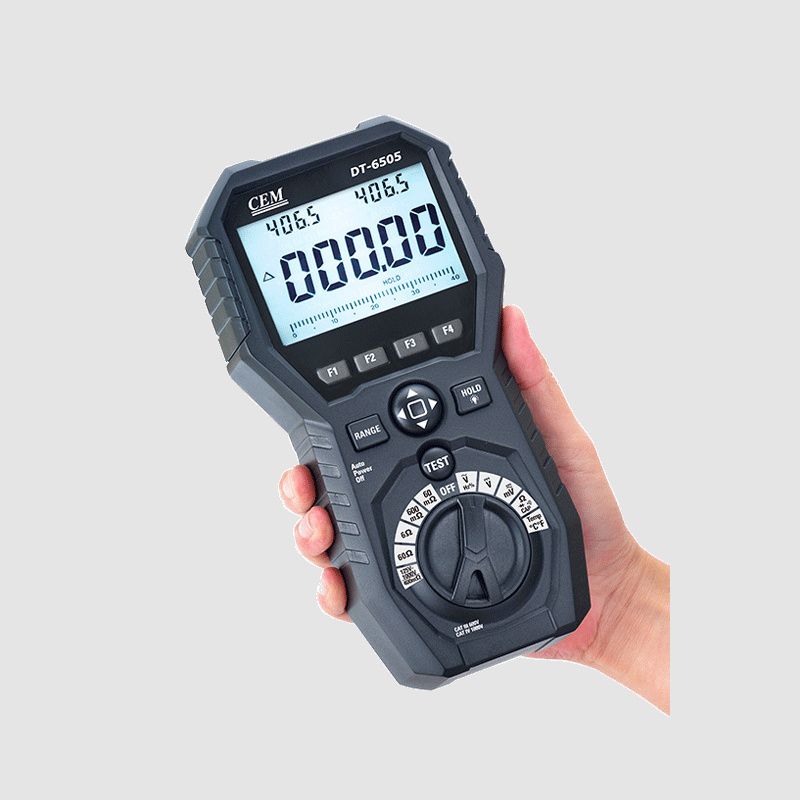

CEM DT-6505 Multimeter + Microohmmeter + 1000V Insulation Tester
Product code: DT-6505
Model: DT-6505
Brand: CEM Instruments
Warranty Time: 2 Yıl
REQUEST FOR SUBMISSION
Save
Print
CEM DT-6505 Multimeter + Microohmmeter + 1000V Insulation Tester combines a full-featured microohm test, True RMS digital multimeter, and digital insulation test into a single compact and portable test device, providing maximum versatility for both troubleshooting and preventive maintenance.
Its rugged and portable design enables professional use in field work.
The TRMS multimeter allows you to perform many measurements with the highest accuracy.
Technical Specifications
- DC Voltage: 1000 V
- AC Voltage: 1000 V
- DC Current: 10 A
- AC Current: 10 A
- Resistance: 50 MΩ
- Capacitance: 5000 μF
- Frequency: 50 MHz
- Duty Cycle: 0.1 - 99.90%
- Temperature: -50 - 1200°C
- Insulation Test: 125, 250, 500, 1000 V (measurement range: 0.125 - 5000 MΩ)
- Microohm (low resistance) Measurement:
0.000 - 5.000 Ω (resolution: 0.001 Ω)
5.00 - 50.0 Ω (resolution: 0.01 Ω)
50.0 - 500.0 Ω (resolution: 0.1 Ω)
500 - 2000 Ω (resolution: 1 Ω) - Dimensions: 97 x 210 x 68 mm
- Weight: 634 grams
Product code: CEM DT-6505
Save
Print
Technical Specifications
- DC Voltage: 1000 V
- AC Voltage: 1000 V
- DC Current: 10 A
- AC Current: 10 A
- Resistance: 50 MΩ
- Capacitance: 5000 μF
- Frequency: 50 MHz
- Duty Cycle: 0.1 - 99.90%
- Temperature: -50 - 1200°C
- Insulation Test: 125, 250, 500, 1000 V (measurement range: 0.125 - 5000 MΩ)
- Microohm (low resistance) Measurement:
0.000 - 5.000 Ω (resolution: 0.001 Ω)
5.00 - 50.0 Ω (resolution: 0.01 Ω)
50.0 - 500.0 Ω (resolution: 0.1 Ω)
500 - 2000 Ω (resolution: 1 Ω) - Dimensions: 97 x 210 x 68 mm
- Weight: 634 grams
Please look the file section for more technical info.
Downloadable Files
CEM DT-6505 - Datasheet (703 kB)
