CEM DT-901 Phase Rotation Indicator
Product code: DT-901
Model: DT-901
Brand: CEM Instruments
Warranty Time: 2 Yıl
REQUEST FOR SUBMISSION
Save
Print

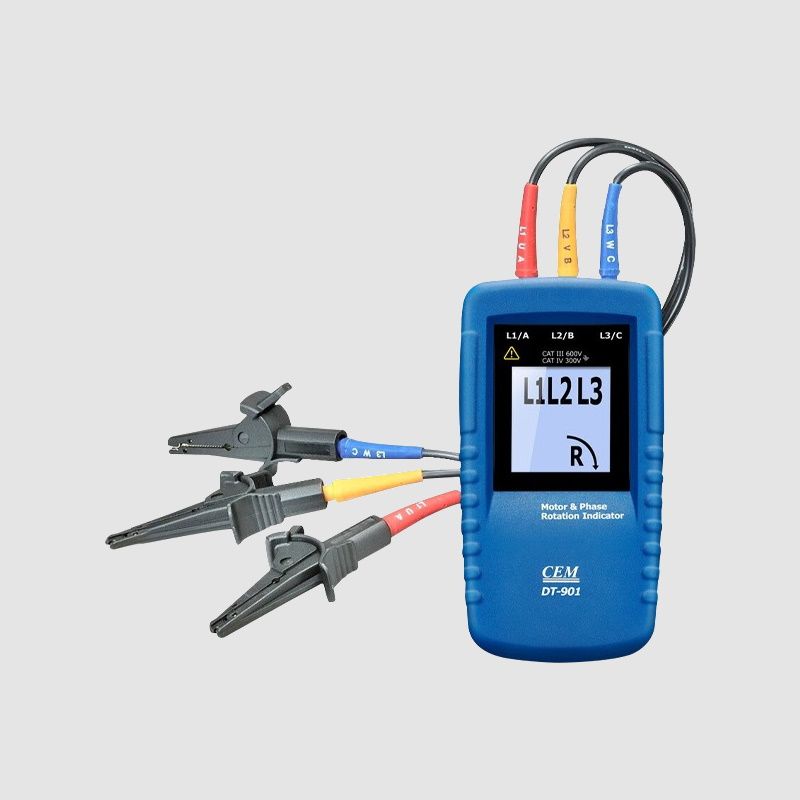

CEM DT-901 Phase Rotation Indicator
Phase Rotation Indicator / Socket Polarity and Earth Leakage Tester
The Phase Rotation Indicator is a handheld instrument designed to detect the rotary field of three-phase systems.
3 Phase indication
Indication of phase rotation
Clear LCD display
No battery required
Features
- Nominal voltage: 40V to 690V AC
- Frequency range: 15 to 400Hz
- Current pickup: 1mA
- Nominal test current(per phase): 1mA
- Power supply: From unit under test
- Electrical safety: IEC61010/EN61010;IEC61557-7/EN61557-7
- Protection level: CATIII 600V
- Type of protection: IP40
- Operating temperature: 0ºC to 40ºC
Product Code: DT-901
Save
Print
Features
- Nominal voltage: 40V to 690V AC
- Frequency range: 15 to 400Hz
- Current pickup: 1mA
- Nominal test current(per phase): 1mA
- Power supply: From unit under test
- Electrical safety: IEC61010/EN61010;IEC61557-7/EN61557-7
- Protection level: CATIII 600V
- Type of protection: IP40
- Operating temperature: 0ºC to 40ºC
Downloadable Files
CEM DT-901 - Datasheet (150 kB)
