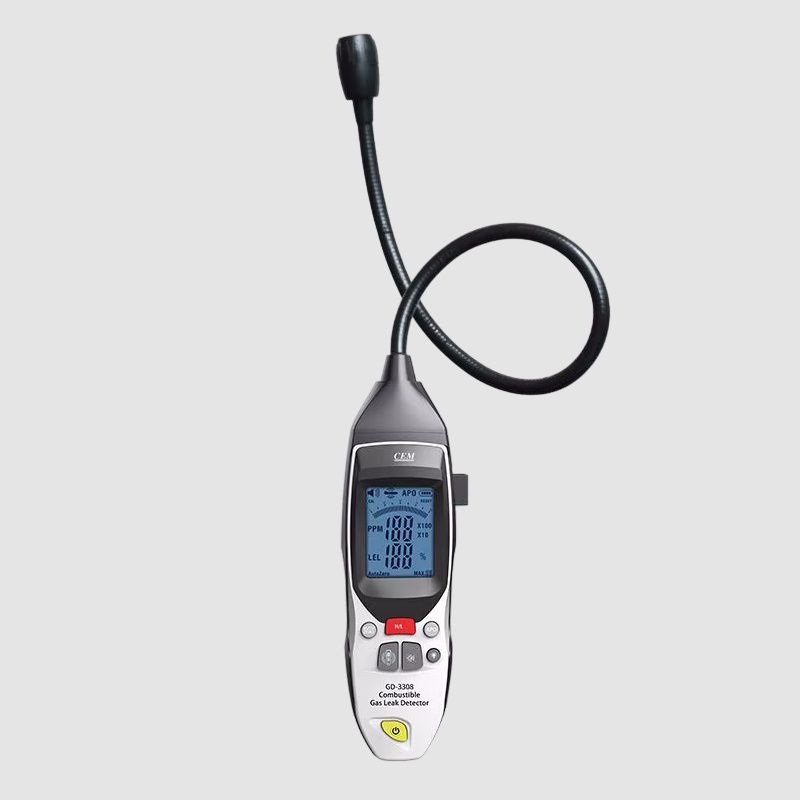

The CEM GD-3308 Flammable Gas Leak Detector detects the presence of flammable gas and measures concentrations ranging from 0 to 10,000 parts per million (PPM). The detector indicates the presence of flammable gas via the reading on its LCD screen. The beep sound works similarly to the click of a Geiger counter: above 3200 PPM, the beep sounds continuously along with the gas concentration. Between 0 PPM and 3200 PPM, the beep sounds rapidly as the combustible gas concentration increases. It provides fast and accurate gas leak detection, making it the best tool for preventing explosions and ensuring safe production.
Detectable gases: Methane, hydrogen, carbon monoxide, propane, ethylene, ethane, hexane, benzene, iso-butane, ethanol, acetaldehyde, formaldehyde, toluene, p-xylene, ammonia, hydrogen sulfide.
General Features
- Digital LCD display
- High sensitivity and reliability
- Detects small leaks: Detects even the smallest leaks, all combustible gas leaks
- Auto Zero
- High accuracy, fast response
- 40 cm flexible probe with replaceable sensor
- Auto shut-off
Technical Specifications
- Sensitivity: <50ppm (methane)
- Range: 0 - 10000ppm (methane)
- Response Time: < 2 seconds
- Warm-up time: Approximately 40 seconds
- Audible alarm: > 75 db
- Vibration alert: Standard
- Probe length: 40 cm
- Display type: LCD
- Dimensions: 220 x 62 x 40 cm
- Weight: 480 grams
Product code: GD-3308
Technical Specifications
- Sensitivity: <50ppm (methane)
- Range: 0 - 10000ppm (methane)
- Response Time: < 2 seconds
- Warm-up time: Approximately 40 seconds
- Audible alarm: > 75 db
- Vibration alert: Standard
- Probe length: 40 cm
- Display type: LCD
- Dimensions: 220 x 62 x 40 cm
- Weight: 480 grams
