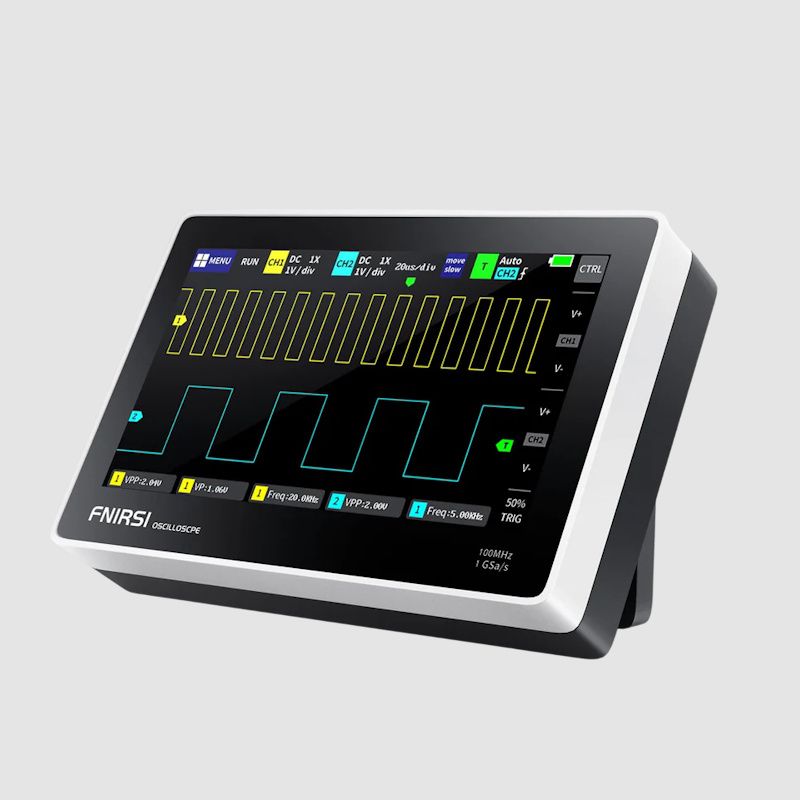

Fnirsi 1013D 100MHz Tablet Panel Oscilloscope

The Fnirsi-1013D is a dual-channel oscilloscope designed for R&D and maintenance, offering a 1GSa/s real-time sampling rate and 100MHz bandwidth per channel. It supports various trigger modes (single/normal/auto) and can handle up to 400V with built-in high-voltage protection. The 7-inch 800x480 touchscreen provides easy control with one-key AUTO function for quick waveform display.

It includes convenient features like cursor measurements, peak detection, and built-in 1GB storage for up to 1000 screenshots and waveforms. The oscilloscope also supports USB connectivity for data sharing, and its 6000mAh battery lasts up to 4 hours on a single charge, usable even while charging.

Features

• 2 Channels
• Portable Handheld Tablet Oscilloscope
• 1GSa/s Sampling Rate (1X=5MHz,10X=100MHz)
• 100MHZ * 2analog bandwidth

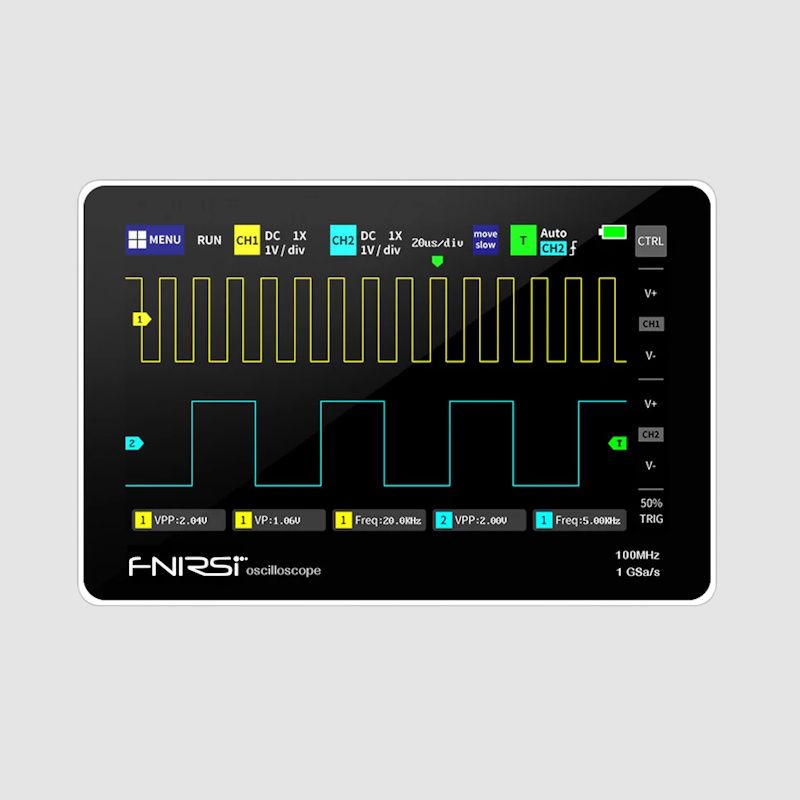

• 7" TFT LCD Touch Screen
• Complete trigger function (single/normal/automatic).
• One-button AUTO and adaptive trigger (25%, 50%, 75%).
• Versatile usage for both periodic analog and aperiodic digital signals.
• high-voltage protection module.
• 1X can measure 0~40V, 10X can measure 0~400V,100X can measure 0~4000V
• Powerful Waveform Picture Manager.
• One-key Screenshot and Saving.
• Cursor measurement function.
• Powerful Waveform Picture Manager.
• Lissajous Graphic Display & FFT Viewing.
• USB Picture Export
• Ideal for both periodic analog and aperiodic digital signals.
• 6000mah battery, continuous usage for 4 hours
• Targeting the maintenance industry and the research and development industry.

Product Code: 1013D
