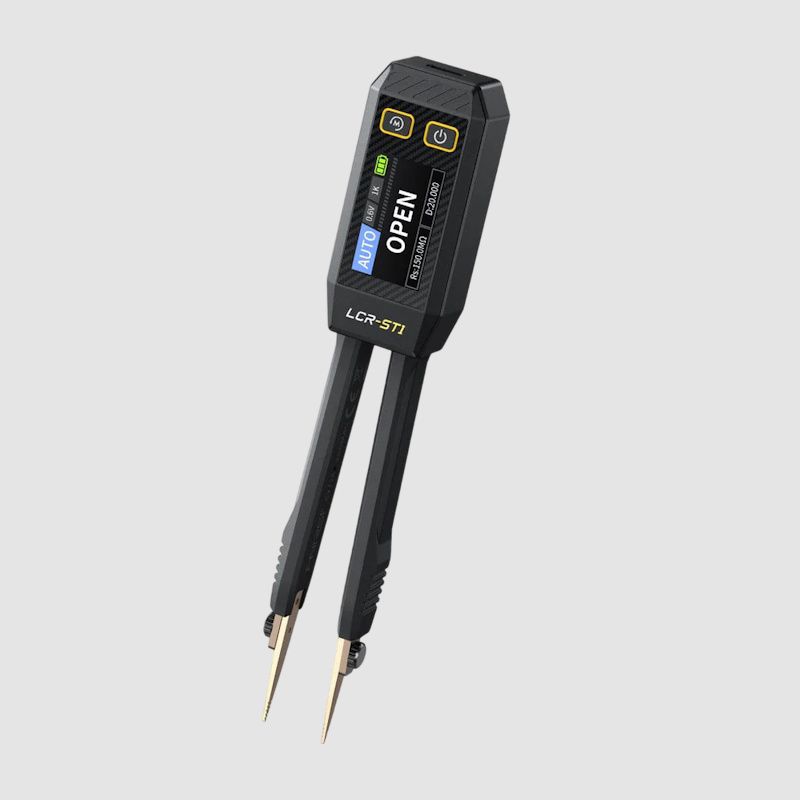

The Fnirsi LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic measurements of resistance, capacitance, inductance, diodes and Continuity.
This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14 inch color screen display and magnetic adsorption function enhance the convenience of use. The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels

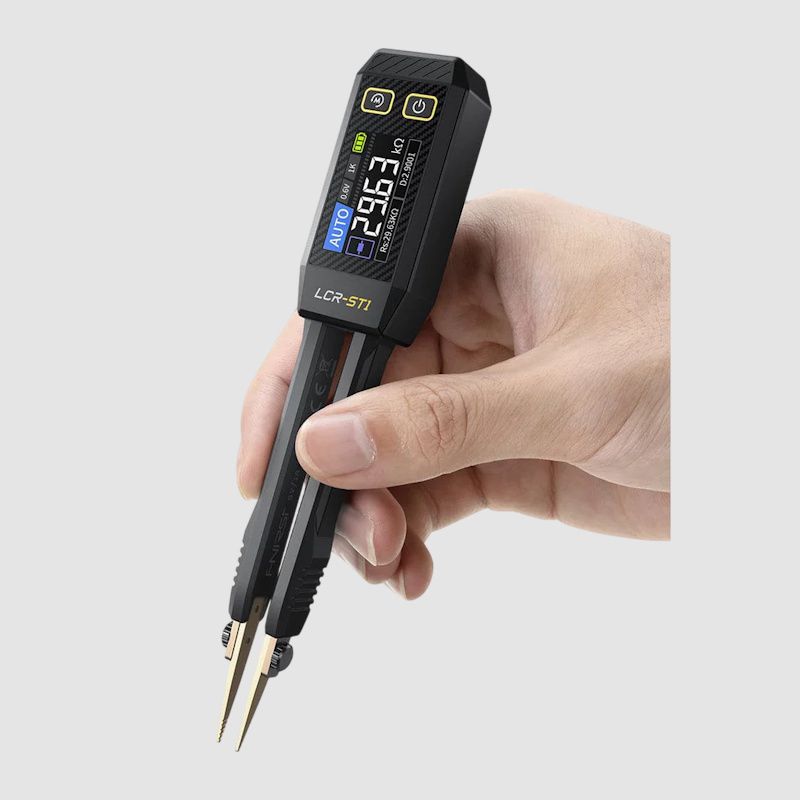

The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components. The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.
Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately. Don't miss out on this excellent tool that combines functionality and portability!
Specifications
- Capacitance Range: 1pF-22mF
- Inductance Range: 1μh-10H
- Resistance Range: 10mΩ-10MΩ
- Test Frequency: 100Hz, 1kHz, 10KHz
- Parameter Display: ESR, D value, Q value, Z value, X value
Please see the files tab for detailed technical information.
Product Code: LCR-ST1
Specifications
- Capacitance Range: 1pF-22mF
- Inductance Range: 1μh-10H
- Resistance Range: 10mΩ-10MΩ
- Test Frequency: 100Hz, 1kHz, 10KHz
- Parameter Display: ESR, D value, Q value, Z value, X value
Please see the files tab for detailed technical information.
