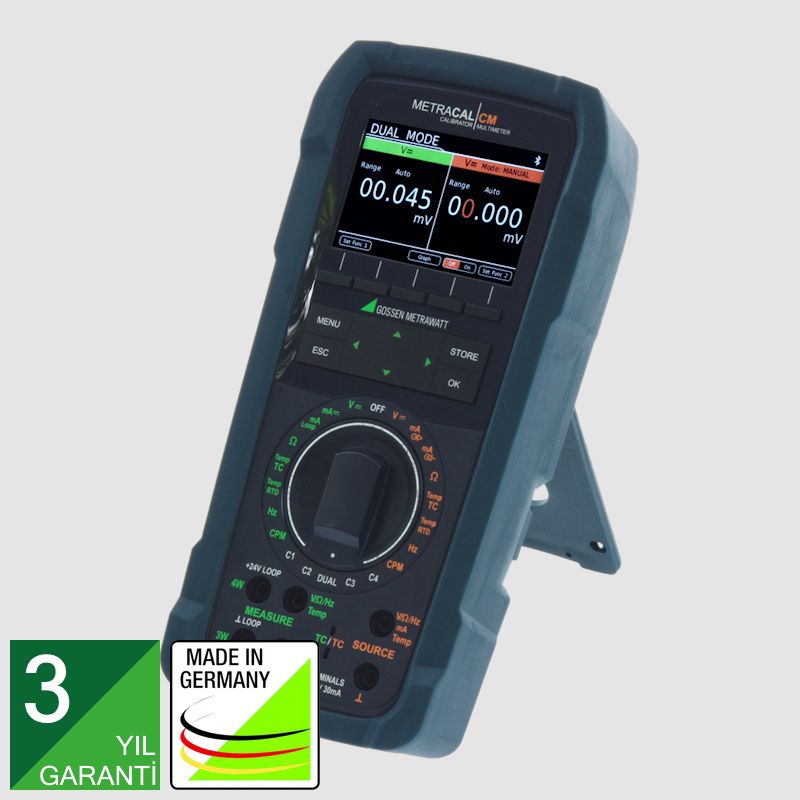

High-precision multimeter and process calibrator for measuring and simulating electrical variables with integrated mA loop function and HART communication
The Metracal CM range is redefining the standard for mobile calibration technology. As multifunctional process calibrators for electrical quantities, they combine maximum measurement precision with user-friendly operation and state-of-the-art communication capabilities.
Featuring dual mode operation, programmable sequences, an integrated data logger and Bluetooth connectivity, these instruments are designed for documented, efficient calibration processes in laboratory, production and field service applications.
The Metracal CM Tech extends the PRO version with an integrated HART interface for direct communication with intelligent field devices. As a result, it’s not only possible to perform electrical testing on transmitters and measuring transducers: their parameters can also be configured and they can be diagnosed – without the need for any additional hardware. The instrument unites precision, communication and efficiency - the ideal tool for modern process instrumentation.
Product Highlights
- Process calibrator with integrated HART communication for parameterization, diagnostics and calibration of intelligent field devices
- Simulation and measurement of mA, mV, V, Ω, Hz, CPM, and temperature signals (TC/RTD) for service, maintenance, and commissioning
- Integrated mA loop function with 24 V loop power supply for supplying and testing 2-wire transmitters
- Four freely configurable quick accesses for frequently used measurement and/or calibration functions
- Dual mode for simultaneous signal generation and measurement as well as plus a clear color display for efficient calibration processes
- Can be expanded in the field via software upgrade - future-proof thanks to optional activation of additional functions
- Quality "Made in Germany" including a DAkkS calibration certificate and 3-year guarantee
Your advantages
- Tests and configures HART-enabled field devices directly ... without any additional modules
- Accelerates initial startup and maintenance work thanks to combined functionality
- Offers maximum signal stability and measuring accuracy
- Minimizes downtime by means of rapid fault diagnosis while the process is running
- Future-proof integration into digitalized calibration processes
Applications
- Ideal for initial startup, service and maintenance in automated process systems
- Communication, testing and configuration of HART transmitters
- Calibration of signal paths in process and automation systems
- Maintenance and service in chemical, pharmaceutical and power generation facilities
- Diagnosis and functional testing of digital field devices
Technical characteristics

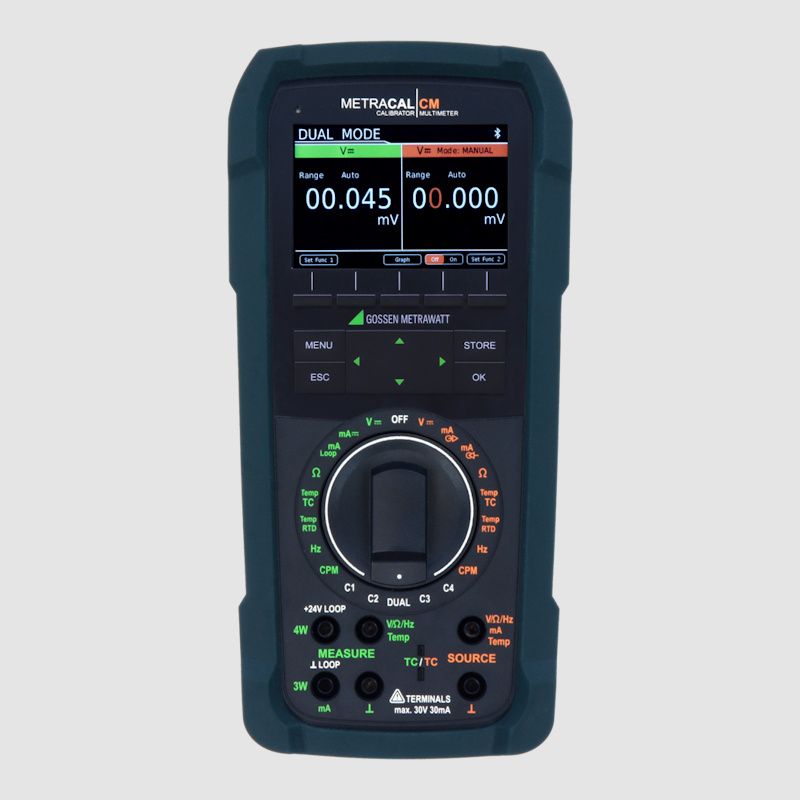

- Dual mode: simultaneous simulation and measurement
- Voltage and current measurement as well as current, voltage, and resistance simulation
- RTD and TC measurement (Pt100 … Pt1000, Ni100 … Ni1000)
- Frequency and pulse generator (1 Hz to 50 kHz / 6 to 3000 CPM)
- 4, 3 and 2-wire resistance measurement • Basic accuracy: 0.015% for VDC
- Integrated data logger with real-time clock and automatic storage of measured values
- Rugged design with quick-change rechargeable battery and IP 52 protection
Delivery
- 1 METRACAL CM handheld calibrator
- 1 feature extension: HART Protocol
- 1 KS25-4 cable set
- 1 quick-change, rechargeable lithium polymer battery with micro USB charging socket
- 1 USB Power Delivery plug-in power supply, 1 ea. USB-C, 1 ea. USB-A, 65 W with interchangeable power plug for EU, UK, US, Asia
- 1 USB cable with USB-A and USB-B connectors, 1 m long
- 1 set of condensed operating instructions, German/English
- 1 DAkkS calibration certificate
- 1 hard case for instrument and accessories
Product code: M275T
