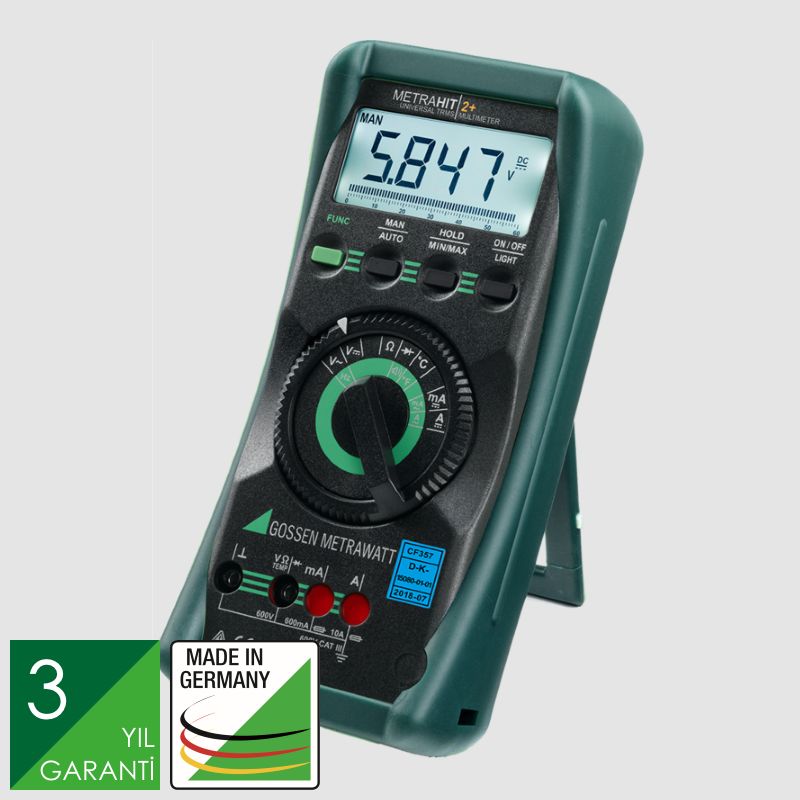

The METRAHIT 2+ provides users with all the measuring functions of a highly diverse multimeter: convincing technology with all voltage, resistance, current and temperature measuring ranges, and additional measuring functions and automatic functions.
Product Highlights
Resolution: 6000 digits (3 6/7 place) and analog bar graph
TRMS measuremnts VAC and IAC
Basic accuracy: 0.5% VDC
Patented automatic blocking sockets (ABS)
Voltage: VDC 100µ to 600 V and VAC 100µ to 600 V
Current: IDC 10µ to 10 A (16 A 30 sec.) and IAC 10µ to 10 A (16 A 30 sec.)
Resistance: 100 mOhm to 40 MOhm
Temperature: -200.0 to +400.0° C, type K thermocouple
Frequency measurement: 0.1 Hz to 1 kHz
Continuity and diode testing
Min-Max measured value storage and DATA hold
DAkkS calibration certificate included as standard feature
Measuring category: 600 V CAT III
Product Code: M205A
