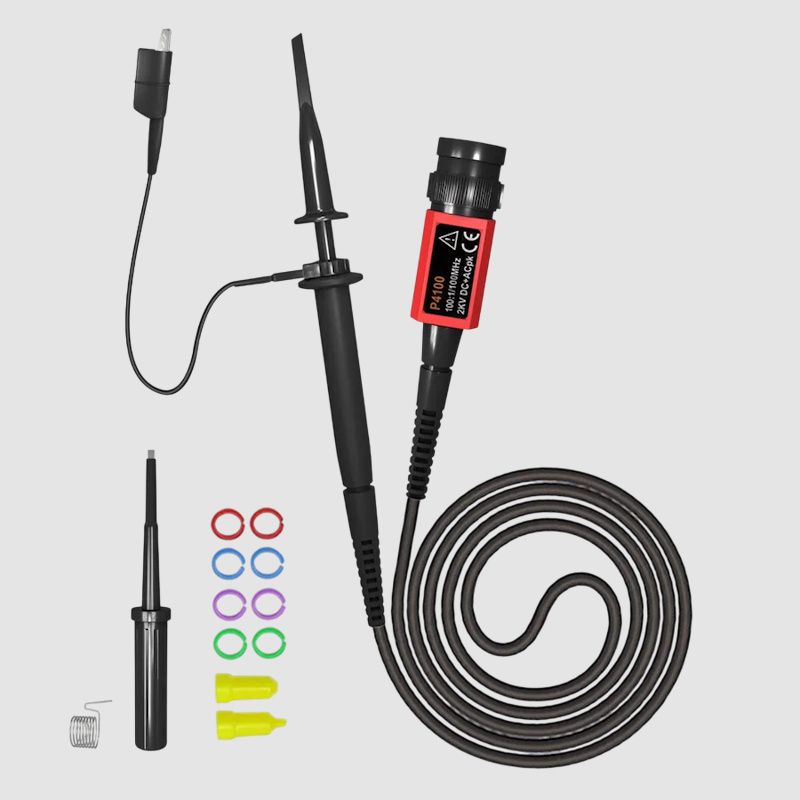

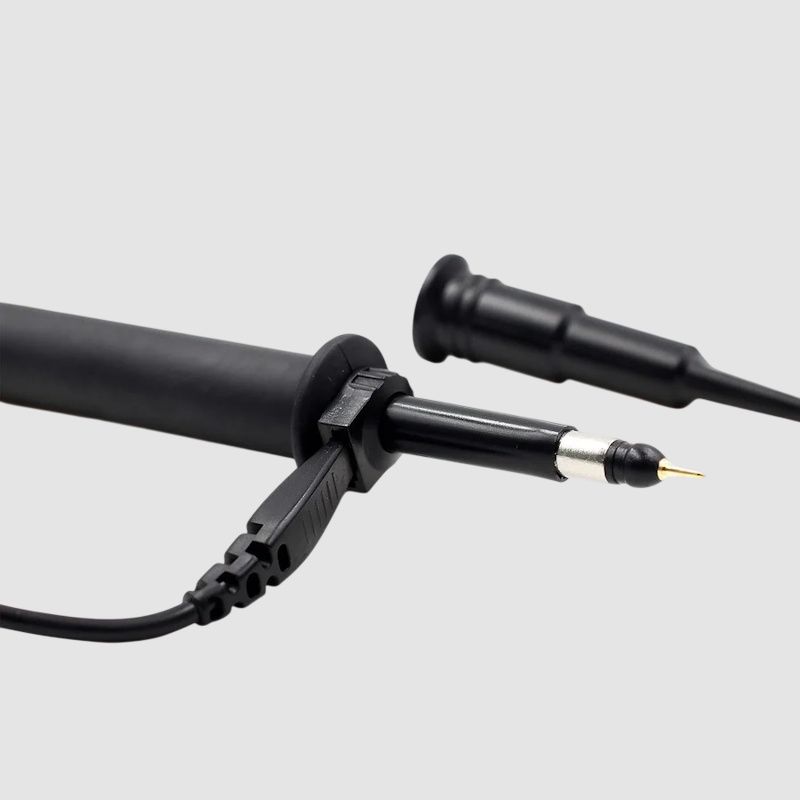

Fnirsi P4100 - 100 MHz High-Voltage Oscilloscope Probe (x100)
Product code: P4100
Model: P4100
Brand: Fnirsi
REQUEST FOR SUBMISSION
Save
Print
The Fnirsi P4100 is a high-voltage oscilloscope probe designed for accurate signal measurement and analysis. Featuring a 100 MHz bandwidth, a 100:1 attenuation ratio, and a maximum working voltage of 1000 V, it is suitable for electronic circuit testing, troubleshooting, and high-voltage measurement applications.
With a 3.5 ns rise time, 100 MΩ input resistance, and 6 pF input capacitance, the P4100 provides reliable signal measurements while minimizing circuit loading.
Its durable ABS housing and 1.1-meter cable ensure convenient operation in laboratories, electronic maintenance, and technical service environments.
Key Features
- 100 MHz bandwidth
- 100:1 attenuation ratio
- 1000 V maximum working voltage
- 3.5 ns rise time
- 100 MΩ input resistance
- 6 pF input capacitance
- 10–35 pF compensation range
- Durable ABS housing
- 1.1-meter cable length
